Sold as a complete package to get you going immediately, you will only require a computer!
DownloadCanadian customers add GST or HST according to your provincial regulations.
Manitoba customers add GST and PST
All other countries are duty free and tax exempt.
The listed price is the final price you will pay.
Shipping is free to urban areas world wide.
Rural areas may incur additional shipping cost.
Specifications | Sting Ray 51 |
---|---|

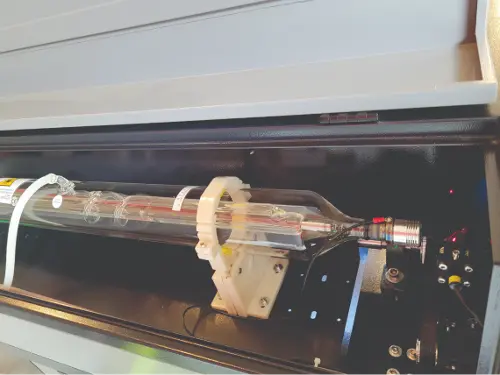

Laser Tube | Reci W4, Reci rated 130watt, wattage will vary slightly |
Work Table Size | 51"W x 36"D x 11"H, D can be infinity with pass through |

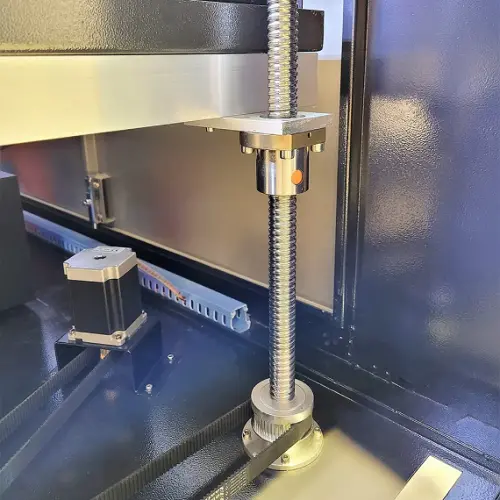

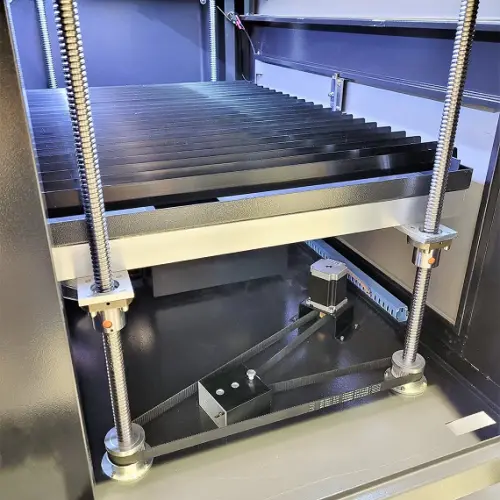

Z Axis Height | 11" |
Machine Stand Alone Size | 72"W x 53"D x 42"H with wheels |
Weight | 486lbs |
Crate Size | 58"L x 75"W x 49"H May vary |
Crate Weight | 970Ibs May vary |

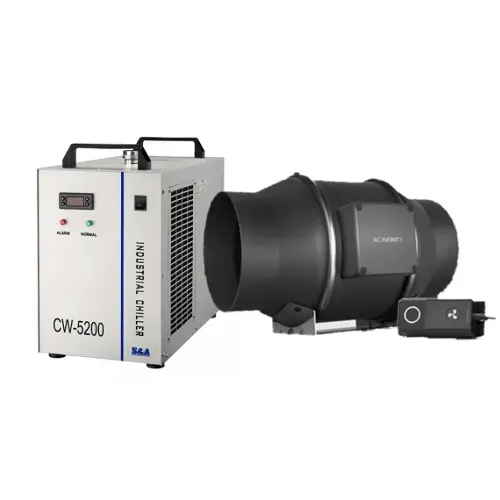

Exhaust | AC Infinity S8 with speed control |

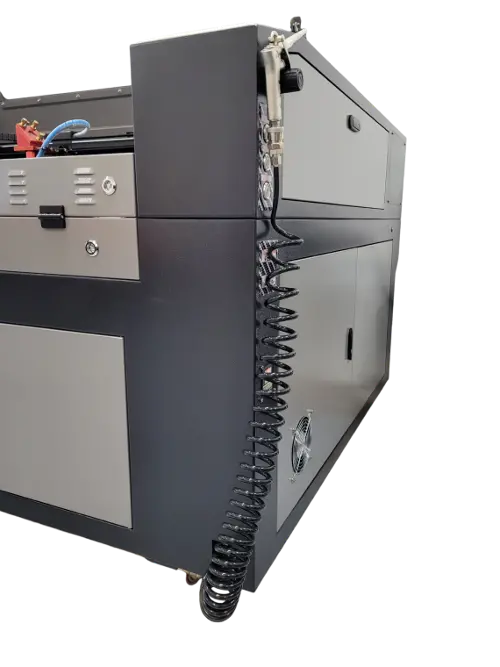

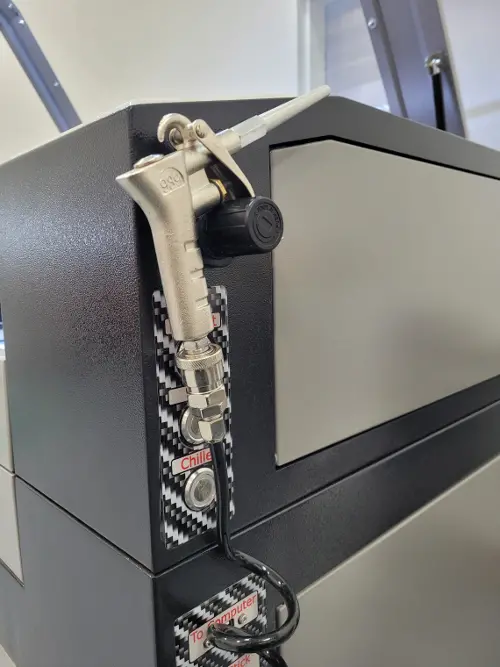

Air Assist | 105W Air Pump |

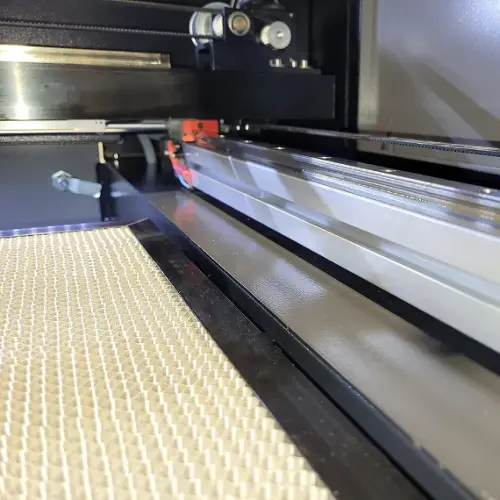

Rail System | High Precision Hiwin Guide Rails |

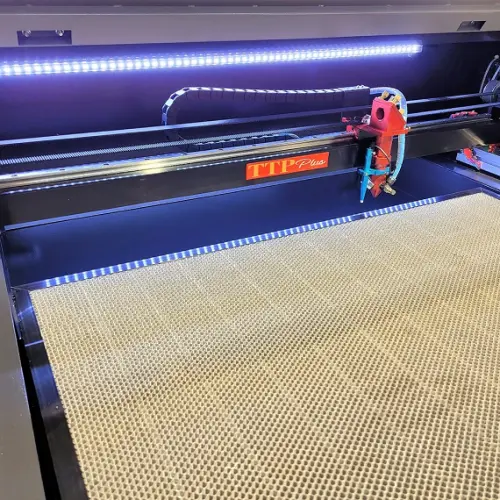

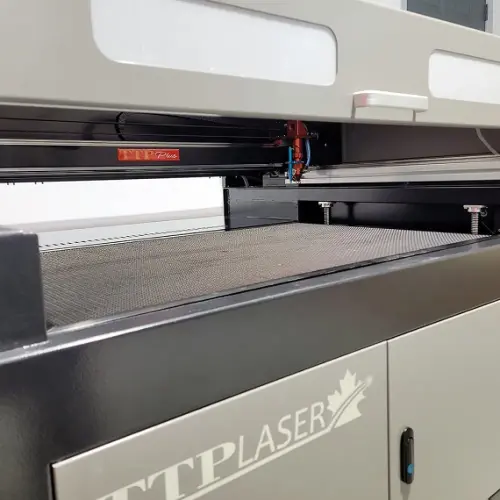

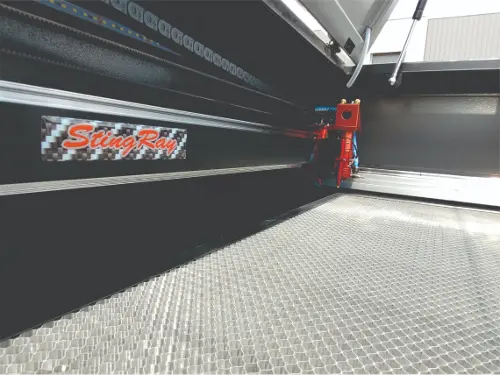

Work Table | Honeycomb and Blades |

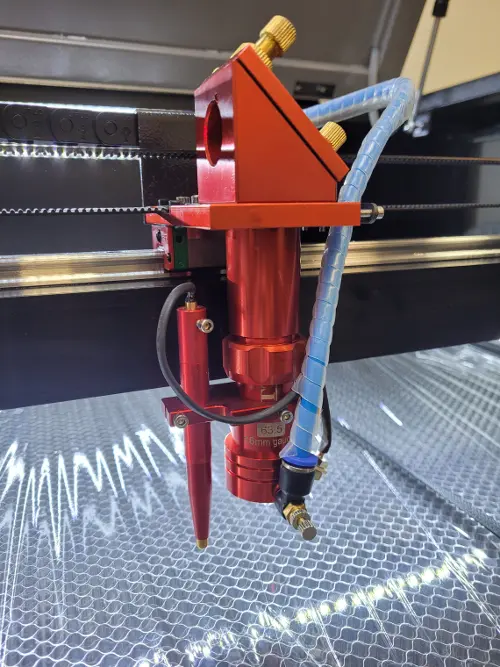

Lens | High Quality USA CVD 63.5mm |

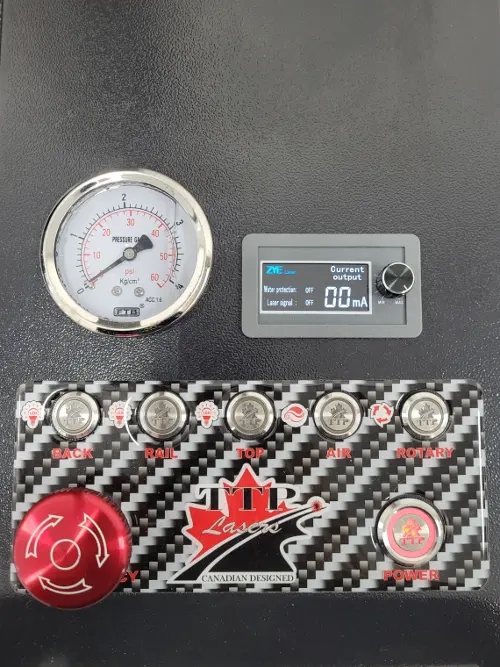

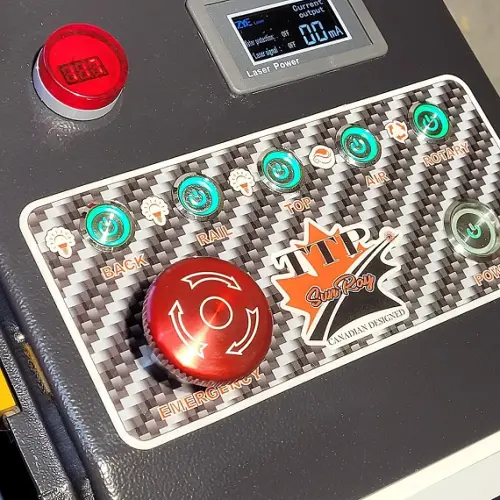

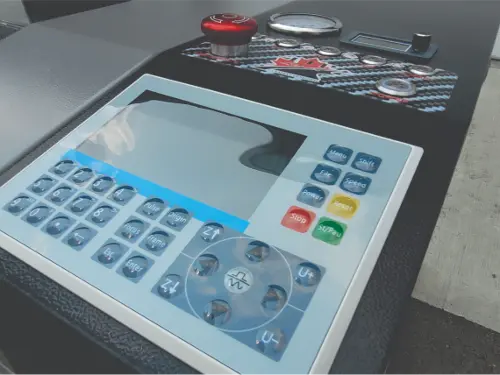

Display And Control Panel | Latest Ruida 6445G |

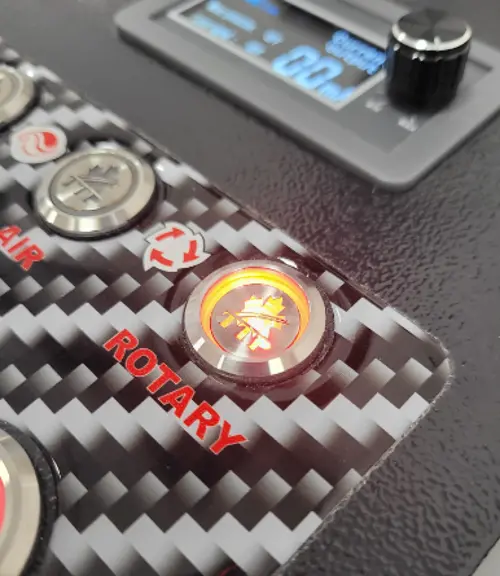

Rotary | Rotary Driver Installed (Rotary Optional) |

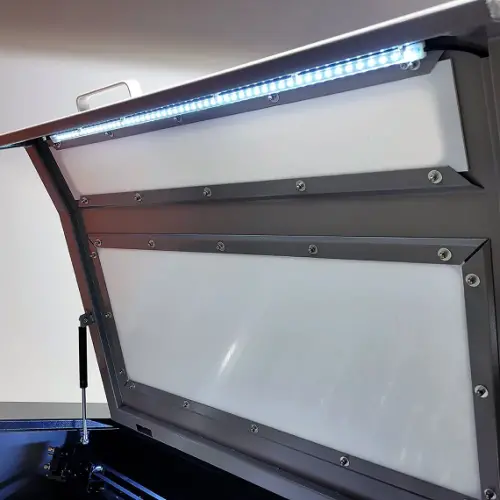

Lighting | 3 24v led work area light, 1 in compartment |
Computer Interface | USB, Wifi, Ethernet, USB Stick |

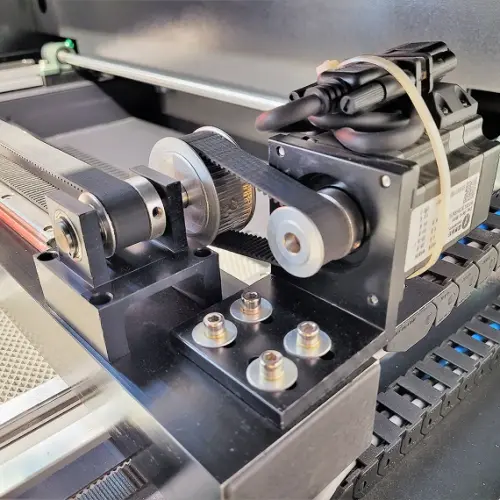

Motion Control Motors | High Speed Hybrid Servo X and Y |
Resolution | 2000DPI Capable, will depend on lens size |
Compatible Operating Systems | Windows XP/2000/Vista/7/8/10/11. Mac compatible with Lightburn |
Supported Graphic | Al, PDF, SVG, DXF, PLT, PNG, JPG, GIF, and BMP) |

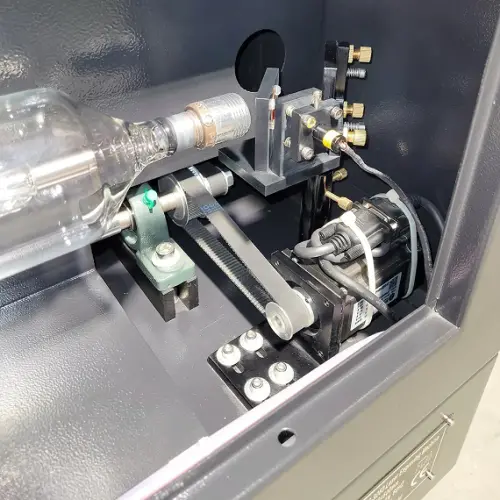

Laser Tube | Glass CO2 Reci W4 |
Supported Software | Lightburn, RDWorks |
Controller Buffer Memory | 128 MB |
Operating Modes | Cutting, Scrolling, Engraving, Combined |
Cooling | S&A CW 5200 Water Chiller |

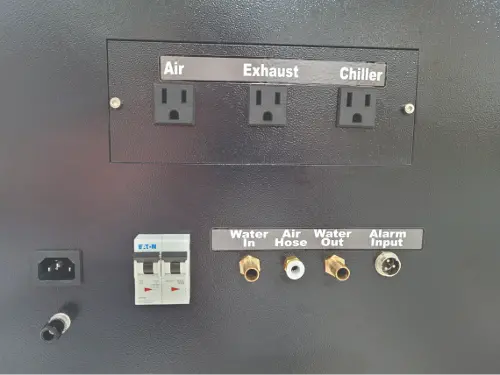

Electrical Requirements | 110v,60 Hz, single phase |
Ventilation Requirements | 8" Duct and Vent |
Specifications are subject to change |
TTP LASER CANADA is a laser machine manufacturer and a TTP’s laser engraver that serves clients across Canada, the USA, and all over the world.
