G-ray


$36,950.00

Plus Applicable Taxes

Sold as a complete package to get you going immediately, you will only require a computer!

Features

    • 100W Glass Sealed – RECI – TTP’s Laser Tube
    • Latest Ruida Controller – Accepts Windows XP < Windows 10
    • Leadshine Hybrid Servo Motors Provide Increased Speed And Productivity
    • Auto Focus Automatically Positions Start Up Distance Between Laser Head And Material
    • Inline Red Dot Beam Combination Accurately Illuminates Over Your Material For Improved Accuracy And Material Alignment
    • Wi-Fi, Ethernet, USB or External Memory Stick Connectivity
    • Illuminated LCD Panel For Automated Laser Head Control
    • Both Honey Comb and Knife Blade Work Platforms Included
    • Multiple Internal LED Strip lighting Illuminates Workspace And Machine Components
    • Numerous Safety Features Like A Large External LED “Working Light” Shows When Projects Are Running Or Complete, Heat Sensor Alarm, Water Flow Sensor And More
    • Quality CNC Machined Parts For Long Term Service And Reliability
    • Precise Hiwin Guide Rails Promote Quiet, Smooth & Precise Laser Movement
    • A Dedicated Driver Controls The Rotary Plug With The Simple Push Of A Button. No Messing Around Swapping Wires
    • Optional Rotary, Wheel or Chuck, For Cylindrical Objects – Sold Separately
    • Best In Class Technical Support and Setup Guidance

Standard Features

Standard Features promo7-2.webp

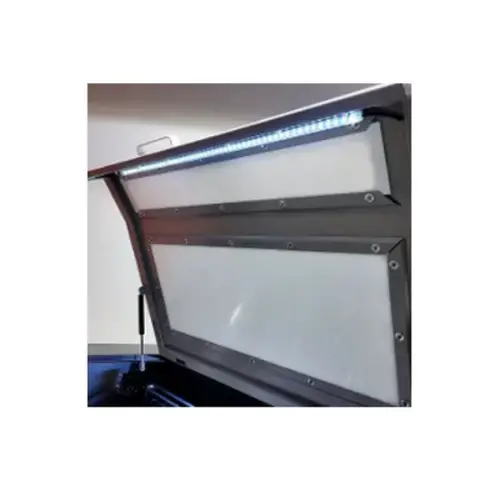

Hood LED With Large Transparent Viewing Area
Standard Features promo7-3.webp

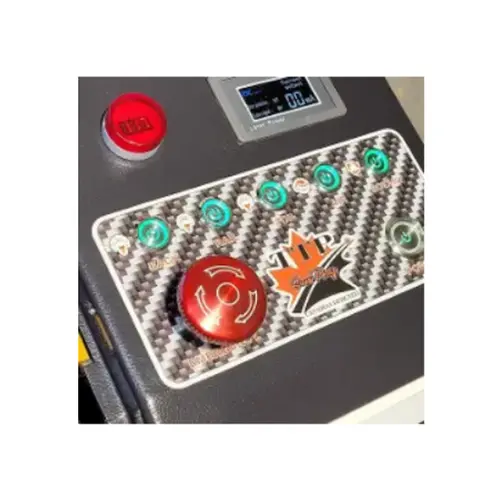

Dedicated Control Center
Standard Features promo7-4.webp

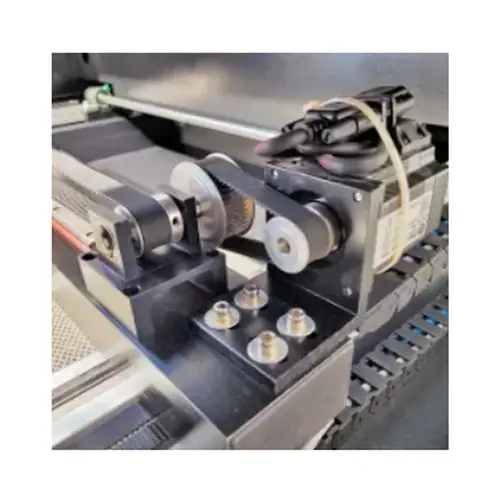

Leadshine Hybrid Servo Motors Offer The Fastet And Most Precise Laser Movements
Standard Features promo7-5.webp

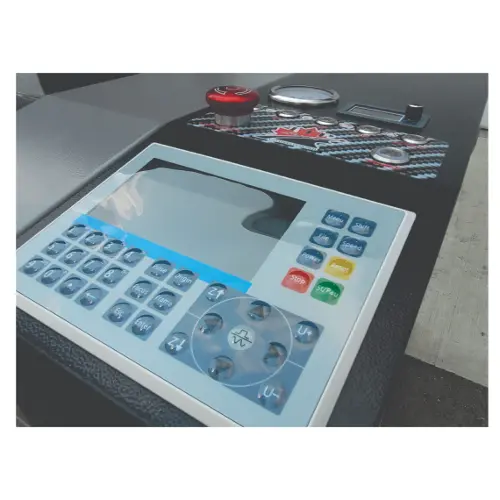

Latest Ruida Controller
Standard Features promo7-6.webp

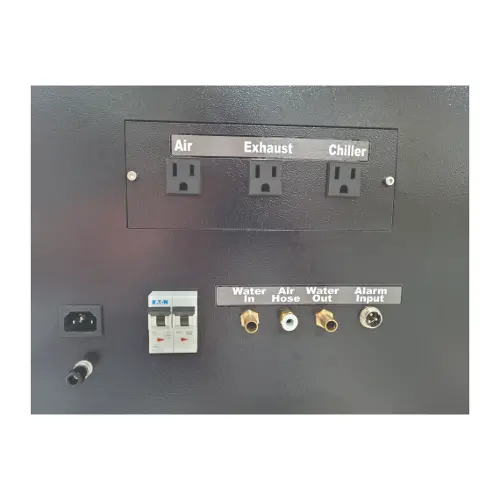

North American Plugs
Standard Features promo7.webp

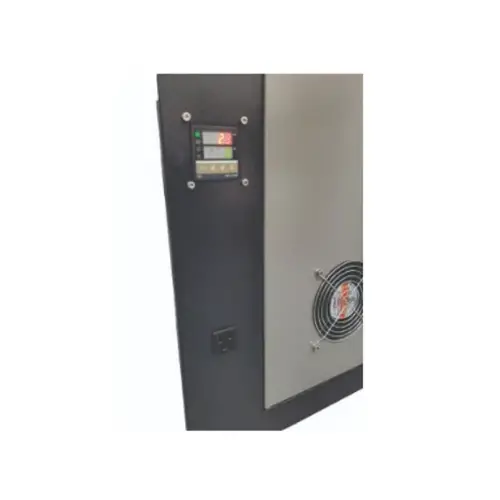

Fire Alarm & Auto Shut Off
Standard Features promo7-1.webp

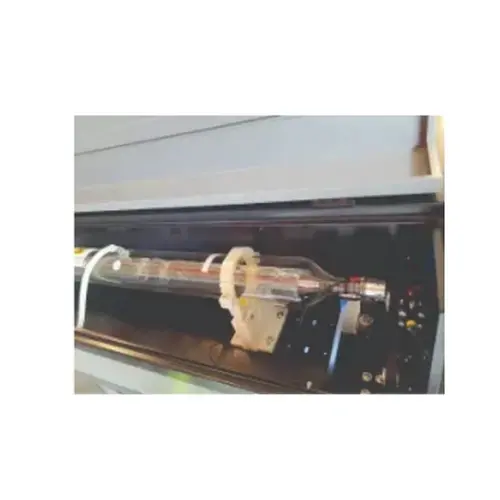

Reci Laser Tube
SPECIFICATIONS LITERAY
Tube Wattage 100W
Work Table Size 27.5W x 19.5D x 6H (")
Work Table Size w/ Pass Thru 27.5W x Infinite D x 0.98H (")
Z Axis Height Max 6" - Auto Focus - Common Screws
Machine Stand Alone Size 57L x 36D(on the stand) x 27.5H (")
Machine Stand Alone Weight 265lbs
Shipping Crate Size (Subject To Change) 63L x 39.3W x 36H (")
Shipping Crate Weight (Subject To Change) 500lbs
Tube Type Sealed CO2 Glass Laser Tube - RECI Class 4
Exhaust 330W
Air Assist 60W Air Pump - Switchable From Auto Mode To Run Only With Design or Full Time
Rail System Precise Hiwin Guide Rails
Work Table Both Honeycomb and Blade
Lens High Quality USA CVD 63.5 20MM - Optional Other Sizes Sold Seperately
Display Panel Ruida Controller 6442 Display
Control Panel Switches Laser Power, Air Pump, Exhaust, Light, Main Power, Emergency Off
Rotary Independent Rotary Circuit, Changes From Y To Rotary With The Push Of A Button - Chuck or Wheel Rotary Sold Separate
Computer Interface Ethernet, or USB Connection
Motion Control System/Type Stepper Motors / Ruida DC 6442 Controller
Resolution (DPI) 100 < 500 Standard Laser Head OR 100 < 1200 DPI Ultra High Resolution Lens (Optional)
Compatible Operating Systems Windows XP/2000/Vista/7/8/10
Supported Graphic Format DSP/PLT/BMP/DXF/AI/DWG
Supported Software CorelDraw/Photoshop/AutoCAD/All Kinds Of Embroidery Software
Buffer Memory 128 MB
Operating Modes Optimized Raster, Vector, and Combined Mode
Minimum Engraving Size Minimum Font Size 1mm x 1mm
Max Engraving Speed 0-800mm/Second
Max Cutting Speed 0-300mm/Second
Cutting Thickness 0-30mm (Varys With Material)

TTP LASER CANADA is a laser machine manufacturer and a TTP’s laser engraver that serves clients across Canada, the USA, and all over the world.
